Please note the list of regularly stocked telescopic cylinders (indicated by an asterisk *) and contact our office to place an order for quick delivery. For a personalized quote on a custom-built cylinder order, please fill out the Quote Sheet, and one of our design engineers will contact you right away.

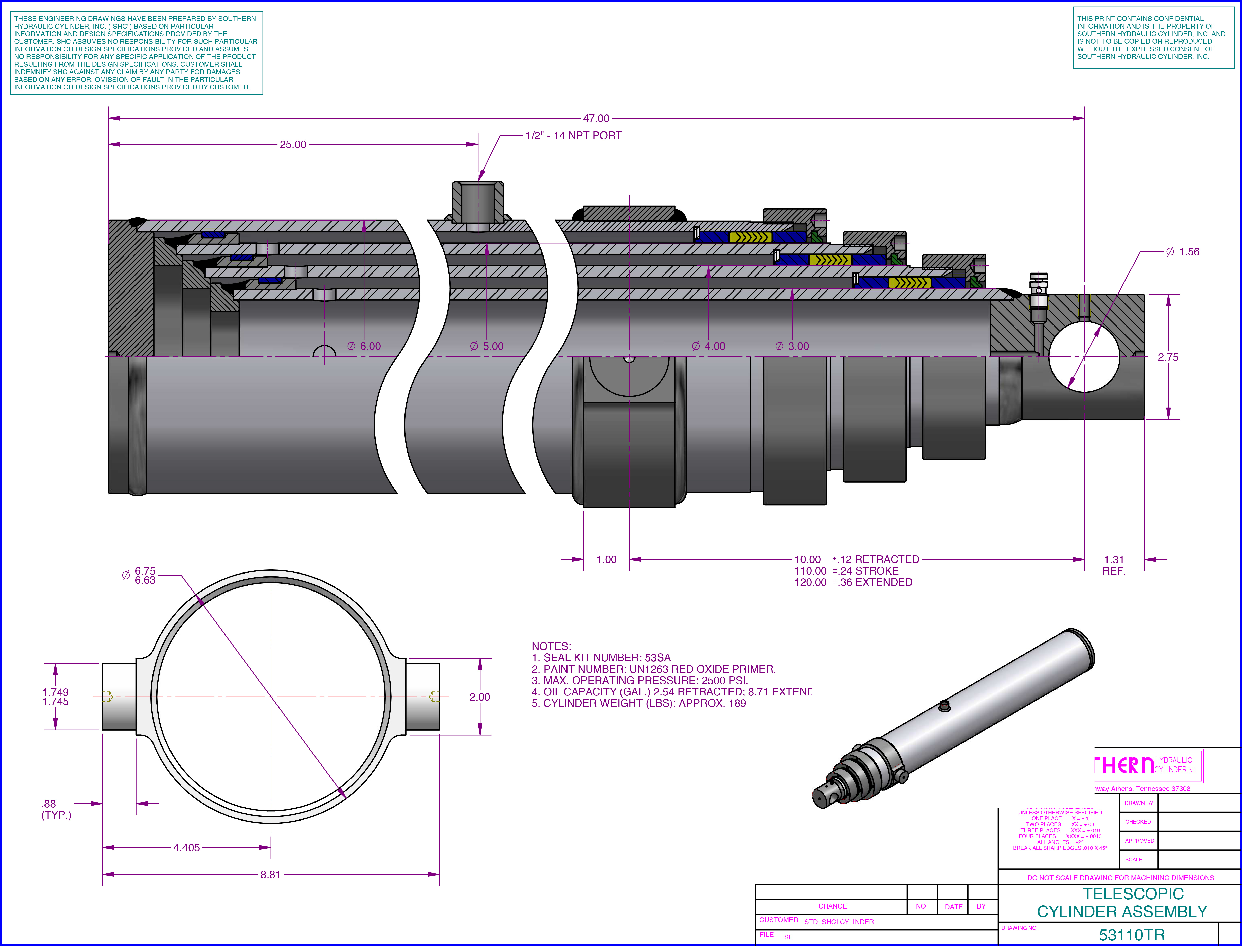

diagram_1



Stage Dia (H) (I) PORT SIZE PRICE
3243TR 42.50 30.00 72.50 4.00 3 2 1.25 1.88 8.50 8.81 1.75 .88 1/2″-14 NPT .61 1.54 60 $660
*4250TR 51.25 35.07 86.32 5.00 4 3 1.50 2.75 8.50 8.81 1.75 .88 1/2″-14 NPT 1.33 3.50 97 $791
4260TR 60.00 39.47 99.47 5.00 4 3 1.50 2.75 8.50 8.81 1.75 .88 1/2″-14 NPT 1.54 4.07 108 $840
*4265TR 65.00 42.07 107.07 5.00 4 3 1.50 2.75 8.50 8.81 1.75 .88 1/2″-14 NPT 1.66 4.41 115 $822
*4374TR 73.88 34.63 108.51 5.00 4 3 2 1.25 1.88 8.50 8.81 1.75 .88 1/2″-14 NPT 1.07 3.45 106 $882
4375TR 68.25 32.75 101.00 5.00 4 3 2 1.25 1.88 8.50 8.81 1.75 .88 1/2″-14 NPT .99 3.19 100 Call
*4398TR 96.42 42.19 138.61 5.00 4 3 2 1.25 1.88 8.69 8.81 1.75 .88 1/2″-14 NPT 1.37 4.50 128 $949
5360TR 56.00 28.81 84.81 6.00 5 4 3 1.50 2.75 8.50 8.81 1.75 .88 1/2″-14 NPT 1.37 4.48 119 $959
*5374TR 74.00 34.63 108.63 6.00 5 4 3 1.50 2.75 8.50 8.81 1.75 .88 1/2″-14 NPT 1.75 5.89 141 $952
*5390TR 86.06 38.63 124.69 6.00 5 4 3 1.50 2.75 8.50 8.81 1.75 .88 1/2″-14 NPT 2.01 6.83 156 $1074
*53110TR 110.00 47.00 120.00 6.00 5 4 3 1.50 2.75 10.00 8.81 1.75 .88 1/2″-14 NPT 2.54 8.71 190 $1357

* DENOTES TYPICALLY STOCKED ITEMS

TR = Single Acting, Trunnion Mount, Dimension off “H” for mount

CT = Single Acting, Cross Tube Mount, welded to base, “D”

Custom Built Hydraulic Cylinders

If you’re looking for a custom-built, quality telescopic cylinder for your business, you’ve come to the right place. Our highly trained professionals, state-of-the-art equipment, and great attention to detail have made Southern Hydraulic Cylinder, Inc. a business that customers return to again and again for high-quality cylinder products. We have extensive experience in creating cylinders for a wide range of businesses, from roadwork and waste removal to automotive recovery. We’re confident we can meet your requirements.

Custom Requests To Fit Your Needs

Having trouble finding a telescoping hydraulic cylinder for sale that meets your exact specifications? Let our team custom build one for you! Although we have a wide range of regularly stocked options, our highly trained engineers, and drafters will work with you to meet your project demands. Your new hydraulic telescopic cylinder will be manufactured in our fully capable CNC shop with incredible precision and attention to detail.

Fast Turnaround Paired With Superior Quality

Here at Southern Hydraulic Cylinder, Inc., we understand that a quick turnaround means lots to both your business and ours, which is why we operate on a four to six-week window basis for most of our projects: much faster than many of our competitors. At the same time, however, we never sacrifice quality. In fact, we guarantee to perform a 100% inspection and oil test on every cylinder we manufacture. We are proud of the products we offer, and will spend as much time on a small order as a massive batch.

To request your personalized quote, fill out our telescopic quote form, and one of our design engineers will be in touch with you shortly. You can also give us a call at: 877-751-0698.
